WAVE ID® Plus SP for secure access to MFPs and network-connected copiers.

rf IDEAS WAVE ID Plus SP is an ultra-slim, multi-purpose card reader for identification, authentication and logical access.

The WAVE ID Plus SP reader easily integrates into existing badge systems. It’s the reader of choice to secure access to multi-function printers (MFP) and network-connected copiers.

The WAVE ID Plus SP an important element of an overall print management solution.

Along with print management software, this reader is the critical front-end of a secure printmanagement solution featuring authentication, pull printing, job accounting, and charge back while enabling compliance with print policies, and helping employees make smarter decisions about their printing requirements.

Purchase readers below or contact us. For rf IDEAS WAVE ID Plus SP datasheets Download here.

Dual-Frequency Keystroke Reader.

The rf IDEAS WAVE ID Plus SP is dual-frequency providing the advantages of reading both proximity and contactless smart cards in one reader. The reader allows users to leverage their employee ID badges, or any 125 kHz or 13.56 MHz tags or fobs, for secure authentication and identification throughout the workplace. Versatile and scalable, the WAVE ID Plus SP is a future proof investment with its SIM card slot for optional expansion with additional secure card types. Designed for easy integration, the reader is compatible with nearly every badge type worldwide.

For a full list of supported card types Click Here

rf IDEAS WAVE ID Plus SP is provided standard with four card configurations (two are pre-set; two are user definable) enabling an IT or security department to seamlessly integrate additional card types. With flash memory and supporting nearly all card types, the programmable WAVE ID Plus SP allows users to configure the reader's output to meet their needs quickly. This multi-technology reader delivers the flexibility to any customer, integrator or end-user managing their different card technologies. It's ideal for enrollment into third party software, for single sign-on integrators and others. Badge based reader solutions eliminate the need to manually enter codes, user names and passwords, streamlining workflow and eliminating identification errors.

The WAVE ID Plus SP Features:

  • Easy interface USB models connect directly to a USB port and can be configured to send data as keystroking or non-keystroking.
  • Compatibility Compatible with Windows XP®, 7®, 8.1®, 10®, Linux and Mac OS
  • Card Configurations Provided standard with four user-definable card configurations, with two pre-set configurations.
  • User-adjustable beeper volume Beeper volume can be configured to be off, low volume, medium volume, or high volume for quiet work areas or, conversely, in noisy work environments.
  • Additional 13.56 MHz contactless card types: NFC 1 & 3, iCLASS Seos, ISO 14443B, FeliCa, CEPAS, Oyster
  • Versatile mounting options Embedded, integrated, desktop or external mount versions. The desktop and external mount versions have a standard. 6 foot cable for easy connection and set-up on desk surfaces or mounting on printers, monitors, time clocks, and more. Other cables included are: 2.5′ mini USB male, 5′ mini USB female, and 7′ mini USB male.
  • rf IDEAS products are backward compatible.
See other products in this category

WAVE ID Plus SP for Printers Intergration Pocket

Readers for secure access to multi-function printers (MFP) & network connected copiers.

Currency:  GBP | USD | EUR
(Must be purchased together with 1 MFP installation, KT-SP-xxxx)

WAVE ID Plus SP Keystroke w/iCLASS SE & Seos Black USB Reader without cable (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

RDR-800H1AKU-X

WAVE ID Plus SP Keystroke w/iCLASS SE & Seos Black USB Reader without cable (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

£188.69

(Must be purchased together with 1 MFP installation, KT-SP-xxxx)

WAVE ID Plus SP Keystroke w/iCLASS SE & Seos Black USB Reader without cable (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

RDR-80LH1BKU-X

WAVE ID Plus SP Keystroke w/iCLASS SE & Seos Black USB Reader without cable (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

£215.82

(Must be purchased together with 1 MFP installation, KT-SP-xxxx)

WAVE ID Plus Enrol SP reader Black & desktop case (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

RDR-805H1AKU-X

WAVE ID Plus Enrol SP reader Black & desktop case (Must be purchased together with 1 MFP installation, KT-SP-xxxx)

£197.44

Purchase together with RDR-805H1AKU-X

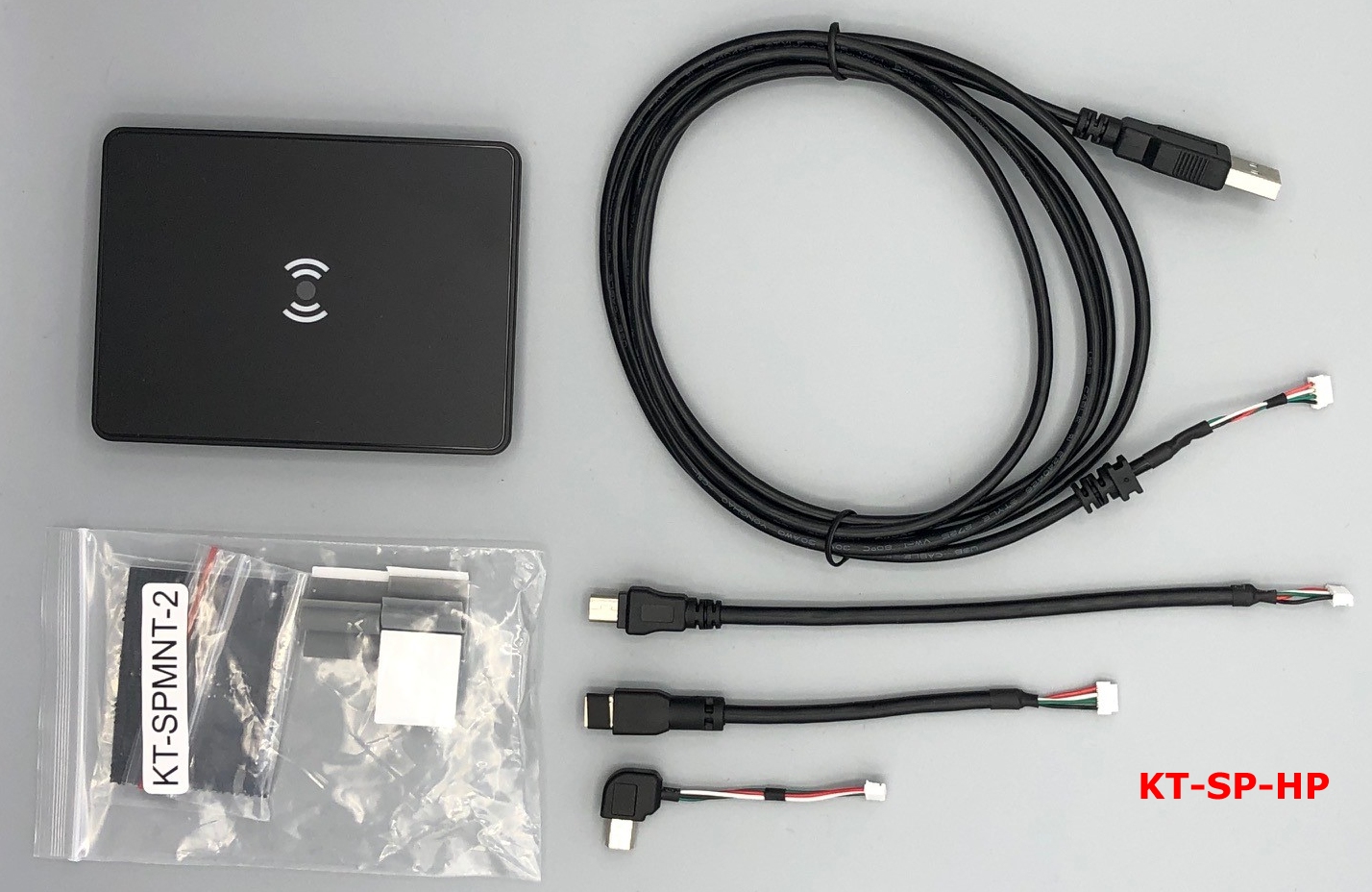

HP installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

KT-SP-HP

HP installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

£21.15

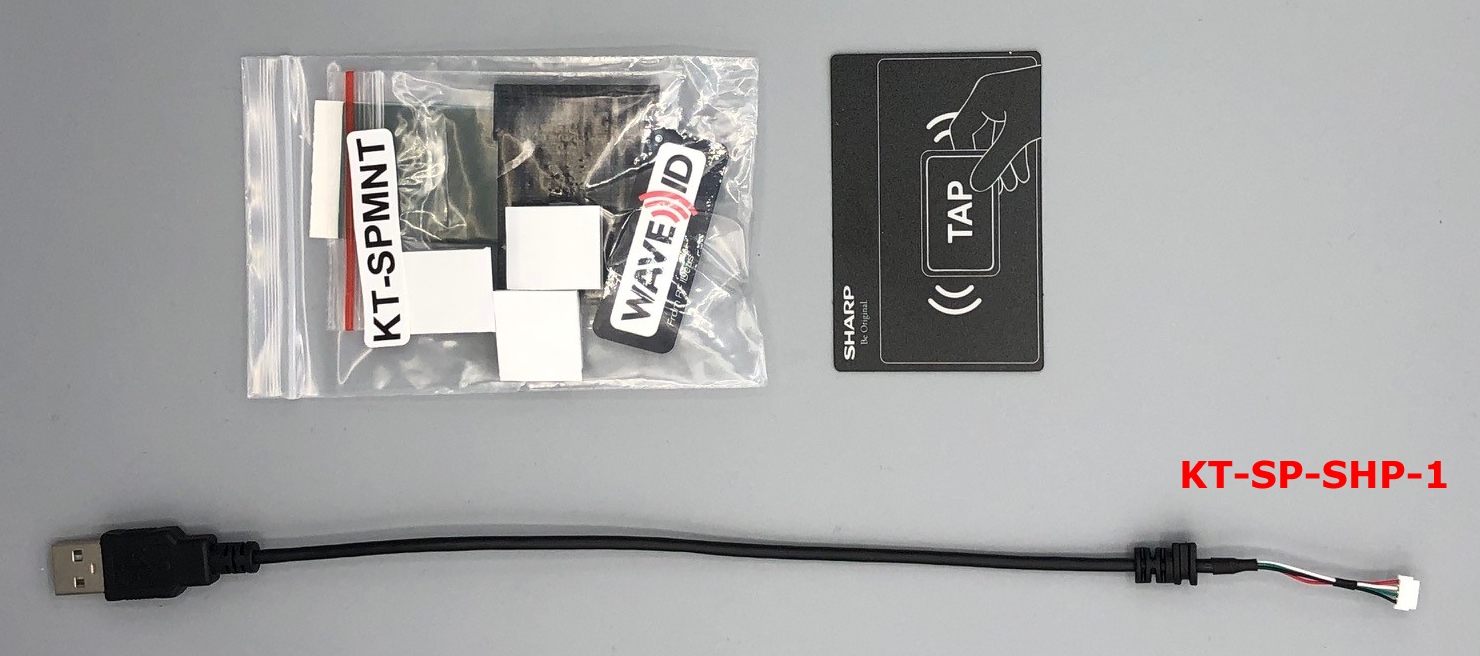

Sharp SP kit with 12" USB Cable for use with RDR-805H1AKU-X, RDR-800H1AKU-X, or RDR-80LH1BKU-X

KT-SP-SHP-1

Sharp SP kit with 12" USB Cable for use with RDR-805H1AKU-X, RDR-800H1AKU-X, or RDR-80LH1BKU-X

£9.31

Sharp SP kit with 6-pin 6" USB Cable (MX-B355 / MX-B455 ) For use with RDR-805H1AKU-X, RDR-800H1AKU-X, or RDR-80LH1BKU-X

KT-SP-SHP-2

Sharp SP kit with 6-pin 6" USB Cable (MX-B355 / MX-B455 ) For use with RDR-805H1AKU-X, RDR-800H1AKU-X, or RDR-80LH1BKU-X

£13.46

Toshiba e-STUDIO installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

KT-SP-TOSHIBA

Toshiba e-STUDIO installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

£10.15

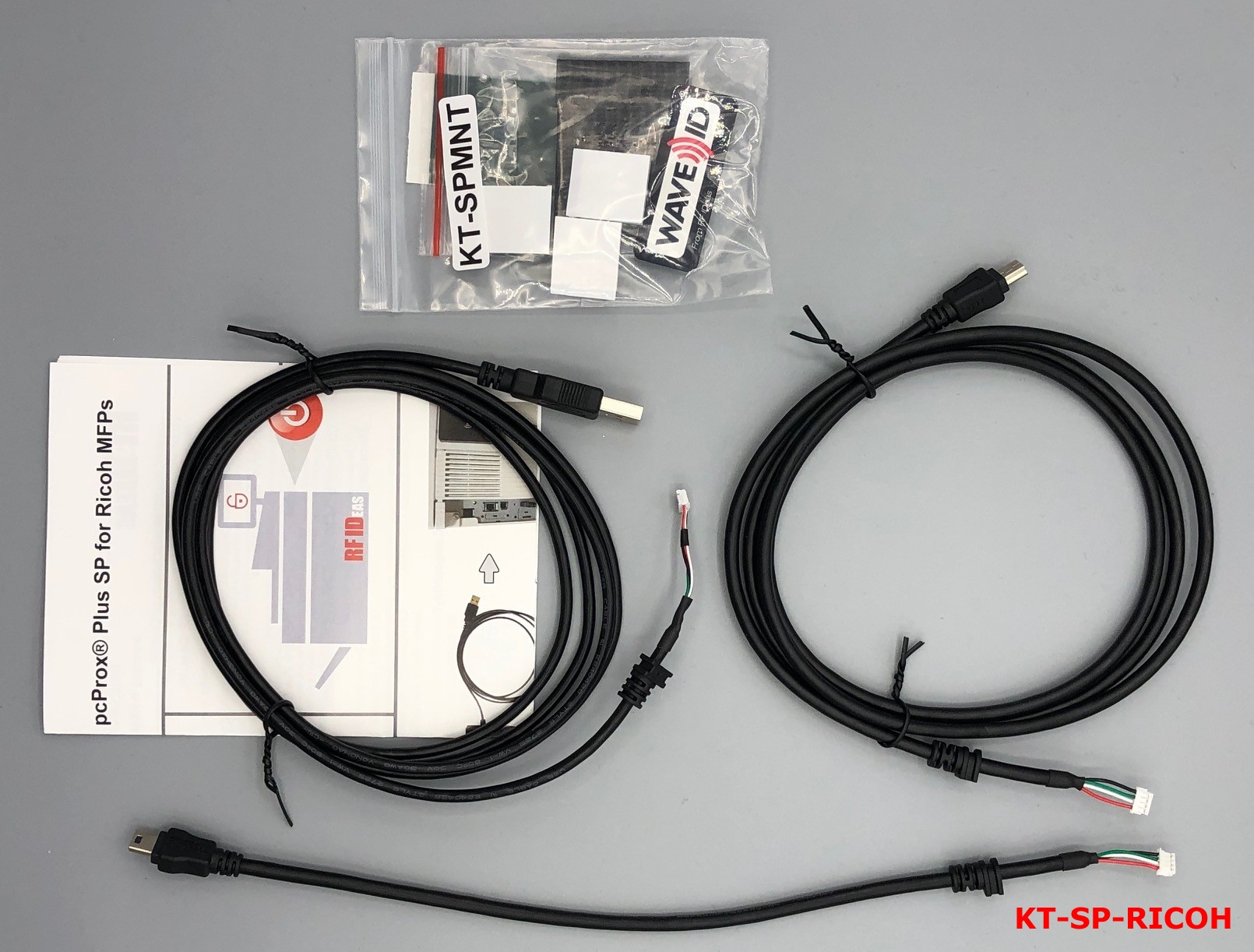

Ricoh installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

KT-SP-RICOH

Ricoh installation kit-( To use with the WAVE ID Plus Enrol SP reader p/n RDR-805H1AKU-X)

£10.15

Kyocera SP installation kit with 3 USB A&B cables, velcro and cable ties (for use with RDR-805H1AKU-X)

KT-SP-MYQ

Kyocera SP installation kit with 3 USB A&B cables, velcro and cable ties (for use with RDR-805H1AKU-X)

£10.03

Keystroke Reader

WAVE ID Plus Black Desktop Reader USB- Keystroke--SP for printers

RDR-805H1AKU

WAVE ID Plus Black Desktop Reader USB- Keystroke--SP for printers

£197.44

WAVE ID Plus Enrol Toshiba Black 7in. USB Reader

RDR-805T1AKU

WAVE ID Plus Enrol Toshiba Black 7in. USB Reader

£232.12

WAVE ID a MIFARE CSN 13.56 MHZ  only reader with the HP case

RDR-75H1AKU

WAVE ID a MIFARE CSN 13.56 MHZ only reader with the HP case

£106.73

Non-Keystroke Reader

 WAVE ID Plus SP Non-Keystroke Reader

RDR-805H2AKU

WAVE ID Plus SP Non-Keystroke Reader

£151.46

WAVE ID SP Plus  MIFARE Secure USB Black Reader

RDR-80MH1AKU

WAVE ID SP Plus MIFARE Secure USB Black Reader

£239.13

WAVE ID Plus Lite Mini with MIFARE Secure

WAVE ID Plus Mini Keystroke MIFARE Secure USB Black Reader

RDR-80M31AKU

WAVE ID Plus Mini Keystroke MIFARE Secure USB Black Reader

£192.76

WAVE ID Plus SP DESFire EV1

WAVE ID Plus SP DESFire EV1 Secure USB Black Reader

RDR-80MH1AKU-D1

WAVE ID Plus SP DESFire EV1 Secure USB Black Reader

£238.69

WAVE ID Plus SP Enroll w/iCLASS (HIP)

WAVE ID Plus ID Reader for Printers Enroll with iCLASS.This Black Desktop USB Reader is also designed to fit the HP printers Hardware Integration Pocket (HIP).  Enroll  for iCLASS SE™ and iCLASS Seos™ ID SIM card

RDR-800H1AKU

WAVE ID Plus ID Reader for Printers Enroll with iCLASS.This Black Desktop USB Reader is also designed to fit the HP printers Hardware Integration Pocket (HIP). Enroll for iCLASS SE™ and iCLASS Seos™ ID SIM card

£239.13

WAVE ID Plus SP Enroll w/iCLASS (TIP)

WAVE ID Plus Enroll w/iCLASS ID Toshiba 18in. USB Reader Pocket with SIM card. Black.

RDR-800T1AKU

WAVE ID Plus Enroll w/iCLASS ID Toshiba 18in. USB Reader Pocket with SIM card. Black.

£176.84

RDR-80081AQU is a special housing which can snap onto the cover on Xerox machines.

WAVE ID Plus Enroll w/SE Chip USB reader Xerox
RDR-80081AQU is a special housing which can snap onto the cover on Xerox machines.

RDR-80081AQU

WAVE ID Plus Enroll w/SE Chip USB reader Xerox RDR-80081AQU is a special housing which can snap onto the cover on Xerox machines.

£103.23

KT-805T1AKU Reader & Bracket Kit for MFP

WAVE ID Plus Keystroke Toshiba Black 8in. USB Reader Black. This Kit includes Reader, bracket, cable and scan point sticker.

RSYRDR805T1AKU
KT-805T1AKU

WAVE ID Plus Keystroke Toshiba Black 8in. USB Reader Black. This Kit includes Reader, bracket, cable and scan point sticker.

£3.36

Ethernet Converters

Currency:  GBP | USD | EUR
Ethernet 241 USB Converter

Ethernet 241  (E241) USB Converter w/Power Supply

C-N11NCK4

Ethernet 241 (E241) USB Converter w/Power Supply

£153.10

Ethernet 241  (E241)  USB Converter w/Power Supply, 5yr warranty

C-N11NCK4-5Y

Ethernet 241 (E241) USB Converter w/Power Supply, 5yr warranty

For more information, contact us.

Power supplies for Ethernet readers and converters

FRIWO PP3 AKE Power Supply, UK Plug Top, 5V ,0.65A, 3W

PSUAKEUK
PP35VUK

FRIWO PP3 AKE Power Supply, UK Plug Top, 5V ,0.65A, 3W

For more information, contact us.

FRIWO PP3 AKE Power Supply, Euro Plug Top, 5V, 0.65A, 3W

PSUAKEEU
PP35VEU

FRIWO PP3 AKE Power Supply, Euro Plug Top, 5V, 0.65A, 3W

For more information, contact us.

WAVE ID Plus SP for RICOH integration pocket

Currency:  GBP | USD | EUR

WAVE ID Plus SP Enrol, Ricoh, Black USB Reader

RDR-805R1AKU

WAVE ID Plus SP Enrol, Ricoh, Black USB Reader

£158.47
